Name: Knox Xenon 6.6kw Pv12000 IP-66 Hybrid Solar Inverter
Brand: Knox
SKU: 30371
Price: 215000.00 PKR
Availability: InStock

Knox Xenon 6.6kw Pv12000 IP-66 Hybrid Solar Inverter

Rated 0 out of 5

(0 Reviews) Write a review

Built for weatherproof reliability, the Knox Xenon 12066 combines dual MPPT solar tracking with IP66 protection for outdoor or indoor installation, backed by a 95% conversion efficiency.

✔ 6.6kW rated output, pure sine wave
✔ Dual MPPT, 12,000W max PV input
✔ 95% max conversion efficiency
✔ 48V battery system, 120A max charging current
✔ 7″ touch HMI screen
✔ Built-in WiFi monitoring
✔ Parallel ready — up to 9 units
✔ IP66 rated for indoor/outdoor installation

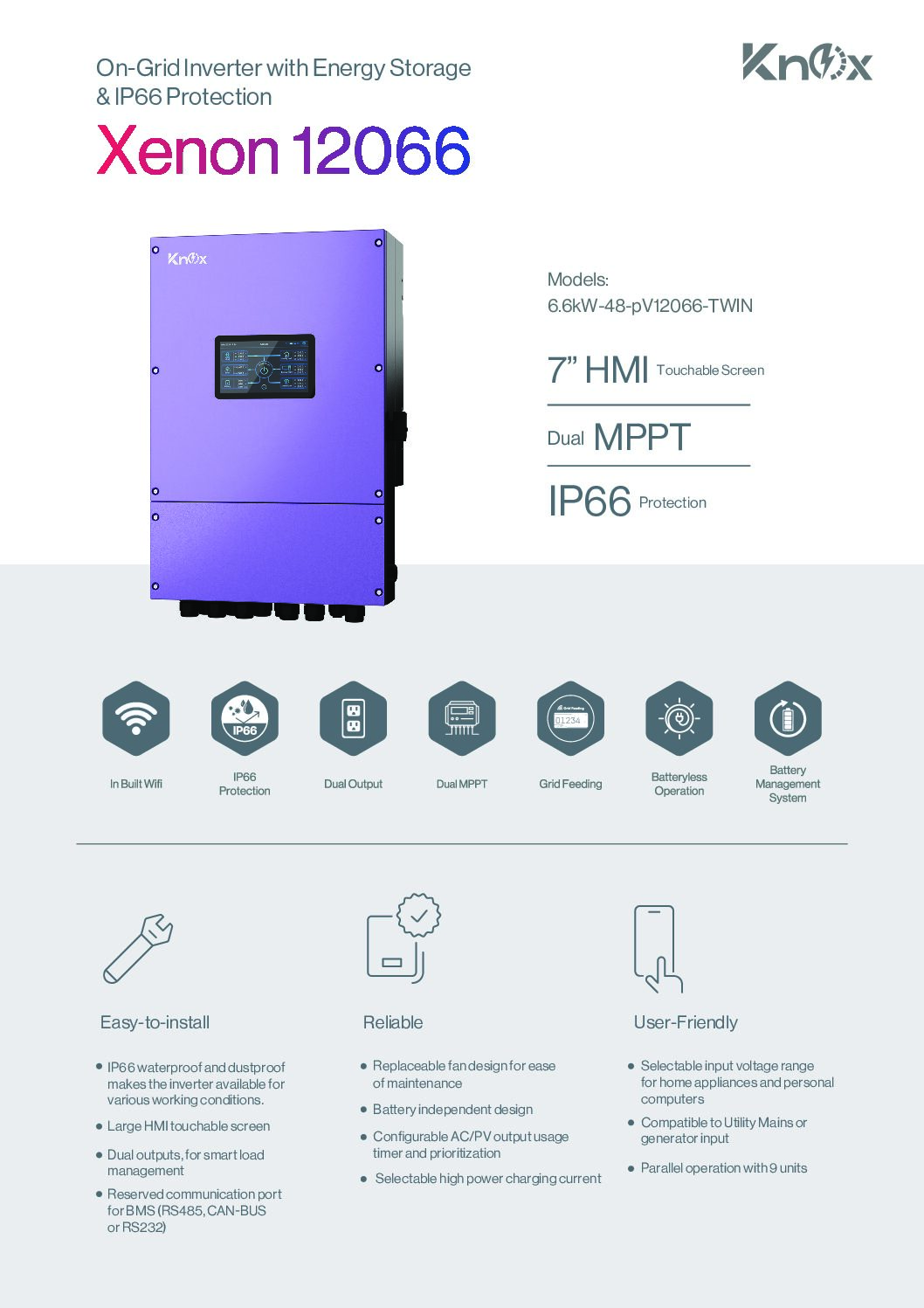

Download Data Sheet -knox-xenon-12066-ip66-6.6kw

(Save ₨10,000.00)

In stock

Description

Knox Xenon 12066 | 6.6kW IP66 Hybrid Solar Inverter

Weatherproof Power. Dual MPPT Precision.

The Knox Xenon 12066 is a 6.6kW hybrid inverter built for residential and commercial setups that need both serious solar capacity and outdoor durability. With dual MPPTs and IP66 waterproof protection, it delivers reliable performance rain or shine.

🔥 Why You’ll Love It

⚡ 6.6kW Rated Output — Stable, efficient power for homes and businesses

☀️ Dual MPPT Inputs — Maximizes solar harvest from two independent PV arrays, up to 12,000W input

🌧️ IP66 Waterproof Protection — Built for outdoor installation, rain or dust storms

🖥️ 7″ Touch HMI Screen — Real-time monitoring and easy system control

🌐 Built-in WiFi Monitoring — Manage your system remotely via mobile app

🛡️ Grid Feeding Support — Export excess solar power and lower your electricity bills

🔗 Parallel Capability — Scalable for larger energy demands

🔋 Pure Sine Wave Output — Clean, stable power safe for sensitive electronics

💡 Built For

✅ Homes & businesses in dusty or humid climates
✅ Outdoor installations needing weatherproof durability
✅ Solar systems with two independent panel arrays
✅ Anyone wanting reliable backup with grid-feed savings

Specification

Excellent — found the full official datasheet. Here's the complete technical specification table:

Knox Xenon 12066 — 6.6kW IP66 Hybrid Solar Inverter

Technical Specifications

Category	Parameter	Specification
General	Model	6.6kW-48-PV12066-TWIN
	Phase	1-phase in / 1-phase out
Power Rating	Rated Output Power	6600 VA / 6600 W
	Maximum Charging Power	6600 W
	Surge Power	12,000 VA
	No Load Power Consumption	< 60 W
Grid-Tie Operation — PV Input (DC)	Nominal / Max. DC Voltage	500 VDC
	Start-up / Initial Feeding Voltage	80 VDC / 150 VDC
	MPPT Voltage Range	120–500 VDC
	No. of MPP Trackers / Max. Input Current	2 / 22A
Grid Output (AC)	Nominal Output Voltage	220 / 230 / 240 VAC
	Output Voltage Range	182–260 VAC (or 184–264.5 / 195.5–253 / 184–264.4 VAC, selectable)
	Nominal Output Current	28.7 A
	Power Factor	> 0.99
Efficiency	Max. Conversion Efficiency (DC/AC)	95%
	European Efficiency @ Vnominal	95%
Off-Grid Operation — AC Input	AC Start-up / Auto Restart Voltage	60–80 VAC / 180 VAC
	Acceptable Input Voltage Range	90–300 VAC or 170–300 VAC
	Frequency Range	50 Hz / 60 Hz (auto-sensing)
Battery (Off-Grid)	Battery Voltage	48 VDC
	Floating Charge Voltage	54 VDC
	Overcharge Protection	66 VDC
	Output Waveform	Pure Sine Wave
	Transfer Time	10 ms (PC) / 20 ms (home appliances)
	Efficiency (DC to AC)	90–93%
Battery & Charger	Battery Voltage Range	48 VDC
	Max. Charging / Discharging Current	120 A / 140 A
	Solar Charger Type	MPPT
Physical	Dimensions (D×W×H)	192 × 414 × 630 mm
	Net Weight	32 kg
Interface	Communication Ports	RS-232, RS-485, USB, CAN, WiFi
	Intelligent Slot	Optional SNMP / Modbus cards
	Parallel Capability	Yes, up to 9 units
Environment	Humidity	0–100% RH (non-condensing)
	Enclosure	IP66
	Operating Temperature	-25°C to 60°C
	Storage Temperature	-15°C to 60°C
	Altitude	0–1000 m
Certifications	Standards	IEC 61682, IEC 62109-1, IEC 62109-2, IEC 61683, Low Voltage Directive 2014/35/EU
